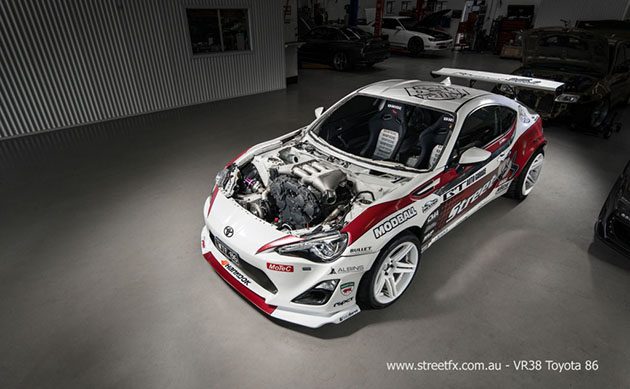

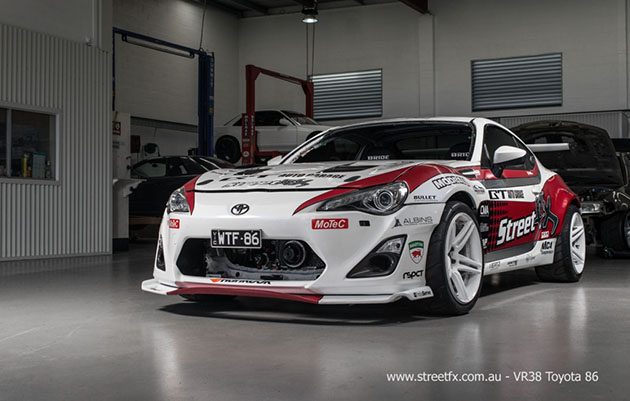

史上最强86!Toyota 86移植R35心脏!
如果要说Toyota很好玩的,那么应该归86莫属了,确实86在操控性的表现是相当不错的,只是因为它的2.0L水平对卧引擎普遍被嫌弃动力偏弱(其实以2.0L的引擎来说这个输出不低了),因此国外有神人将东瀛战神的心脏VR38DETT移植到了86上面,让这款86成为了地表最强的86!

史上最强86!Toyota 86移植R35心脏! 史上最强86!Toyota 86移植R35心脏! 史上最强86!Toyota 86移植R35心脏!

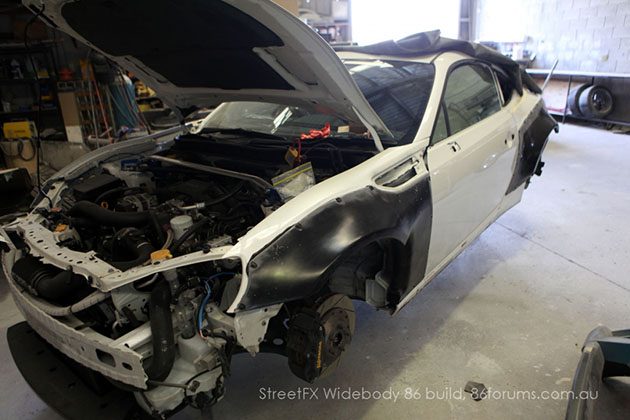

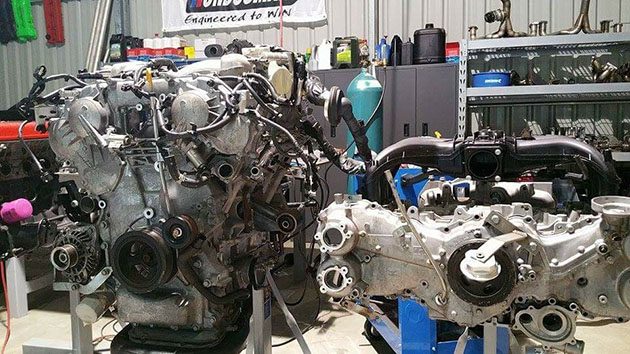

将战神引擎移植到86的是澳洲的改装爱好者,他们嫌弃86原本的2.0L水平对卧D4S引擎动力表现不足够,因此就决定将这个怪兽心脏移植到到86上,但是因为86原本的引擎室无法容纳排气量达到3.8L的VR38DETT,因此在改装上他们可是花了不少功夫,除了引擎外,他们也对这辆车做出了相当大的改装,瞬间让这个地表最强的86战斗力破表。

史上最强86!Toyota 86移植R35心脏!

根据改装者表示,这辆86的马力高达1000 hp,同时这辆86的设定并不是只为了下赛道奔驰而已,就算是一般的使用也没有问题,但是我相信没有人开着这样一辆怪兽去买菜吧。。。

以下是有关单位为86所做出的所作出的所有改装:

Engine and Driveline

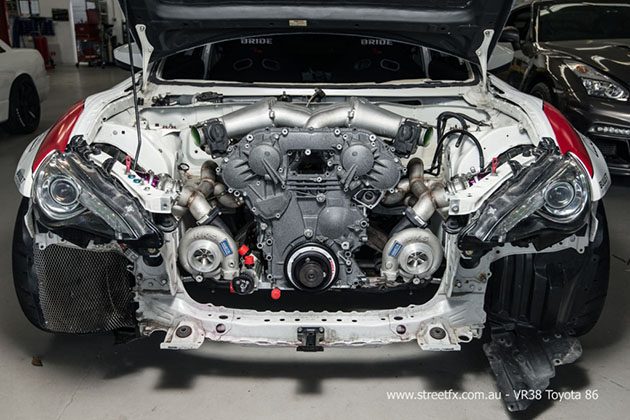

Nissan VR38 (HKS 4.1L VR41, assembled by JHH)
2x HKS wastegates
2x HKS Ball Bearing GT2-7867 Symmetrical turbochargers (GT1000 63T Compressor, 77T 0.66A/R Exhaust)
ATI Hamonic Balancer
Custom engine mounts
Dailey Engineering 2WD conversion Dry Sump Kit
Albins 6 Speed Sequential gearbox & VR38 bellhousing
Custom Clutch
Custom transmission mounts
Ford 8.8in rear diff, 4.11 ratio – FBM billet diff kit to suit 86/BRZ
FBM 5×114.3hub conversion kit
Greddy EVO exhaust

ECU and electronics
Motec air actuated paddle shift kit
Motec M150 ECU, traction control, launch control, data logging
Motec Canbus O2 sensor kit
Motec C185 widescreen LCD dash with data logging

Wheels and tyres
Concave concepts CC03 18x11in rims
Hankook Z221 295/35/18 semi slick R compound tyres

Brakes and suspension
MCA “Red Series” coil-overs
AP Racing brakes front and rear
Cusco Rear Strut brace
Cusco front and rear tow hooks
Cusco rear lower control arms
Cusco underbody Bracing
RacerX front lower control arms
RacerX rear upper control arms

Cosmetic
StreetFX slimline license plate bracket
StreetFX LED upgrade (inside and out)
StreetFX chrome mirror indicator bulbs
Valenti “SG” Tail lights
Valenti “SG” foglight/reverse light with StreetFX brakelight modification
24LED License plate light modules

Exterior
Rocket Bunny Widebody, custom moulded by Cameron’s Bodyworks
Seibon Carbon Fibre bonnet
Rocket Bunny Wing
BRZ Side fender garnishes
Custom blue pearl paint
APR Carbon brake duct intake vents
Beatsonic sharkfin roof antenna

Interior
Bride LowMax Recliners
Sparco 5 point harnesses
JPM Coachworks instrument gauge cluster cover
JPM Coachworks handbrake boot
JPM Coachworks gear boot
JPM Coachworks speaker surrounds
JPM Coachworks kneepads

Audio
CaFi 62100 Android head unit with OBD2 interface
Hertz 3-way front splits
Hertz 10″ sub in Hertz box
Tyre Pressure Monitoring System (TPMS) interfaced with head unit video feed
Mongoose reverse camera

Fuel System
FBM in-tank twin Fuel pumps (lift pumps)
Mechanical high pressure fuel pump

Cooling system
PWR Radiator
PWR Intercooler
PWR Oil cooler
PWR transmission cooler

影片:

原文链接:http://www.streetfx.com.au/streetfx-wtf86-worlds-first-toyota-86-powered-by-a-4-1l-hks-gt1000-r35-gtr-engine/
